Allen & Heath QU-6 - $2,999 (Stockton)
make / manufacturer:
Alleen & Heath
model name / number:
QU 6
QR Code Link to This Post
All New Hardware.
The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.
Audio
Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.
Control
Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.
Tech Specs
Type: Digital Mixer
Channels: 38

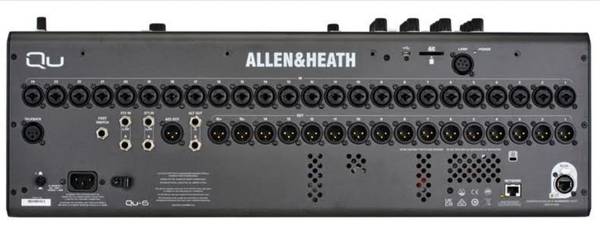

Inputs - Mic Preamps: 24 x XLR-1/4" (mic/line)
Phantom Power: 24 Channels
Inputs - Other: 4 x 1/4" (2 Stereo In)
Outputs - Main: 2 x XLR (left, right)
Outputs - Direct: 14 x XLR
Outputs - Other: 2 x 1/4" (alt)
Outputs - Digital: 1 x XLR (AES/EBU)
Talkback: 1 x XLR
Data I/O: 1 x EtherCon (SLink), 1 x RJ45
Headphones: 1 x 1/4"
USB: 1 x USB-A, 1 x USB-C
Computer Connectivity: USB-C (32x32)
Remote: 1 x Footswitch
Faders: 25 x 100m Motorized Faders
A/D Resolution: 96kHz
EQ Bands: 4-band parametric
Features: 96kHz FPGA Core
Screen: 7" Capacitive Touchscreen
Storage: SD card slot
Software: Remote control via free apps - Windows/MacOS/iOS/Android
Power Source: IEC Main Connection w/Worldwide PSU
Height: 8.4"
Depth: 18.7"
Width: 24"
Weight: 28.43 lbs.
